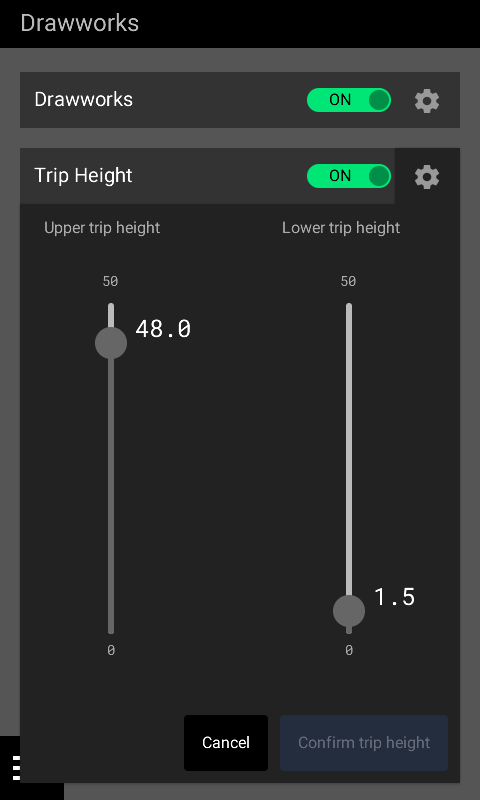

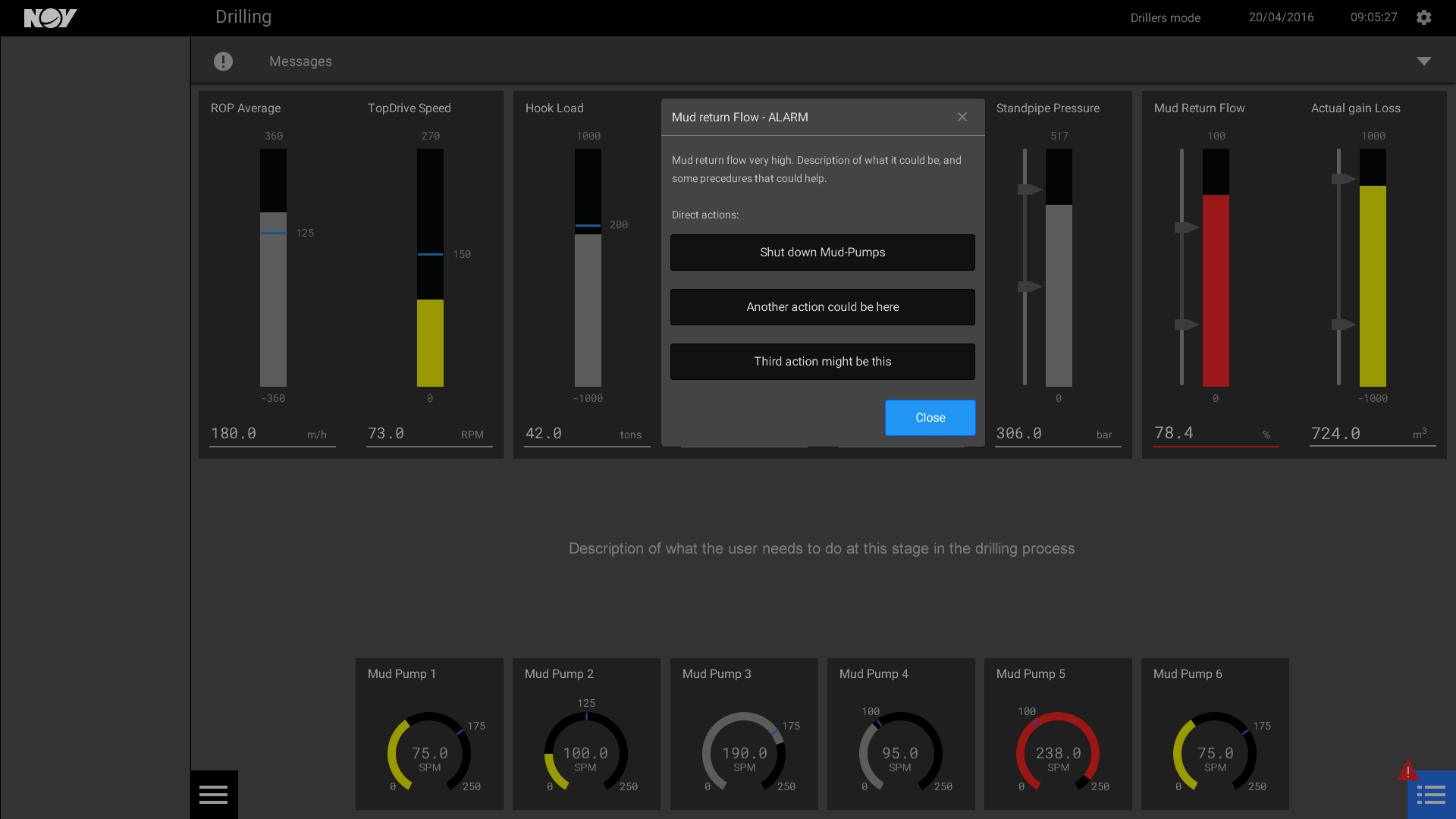

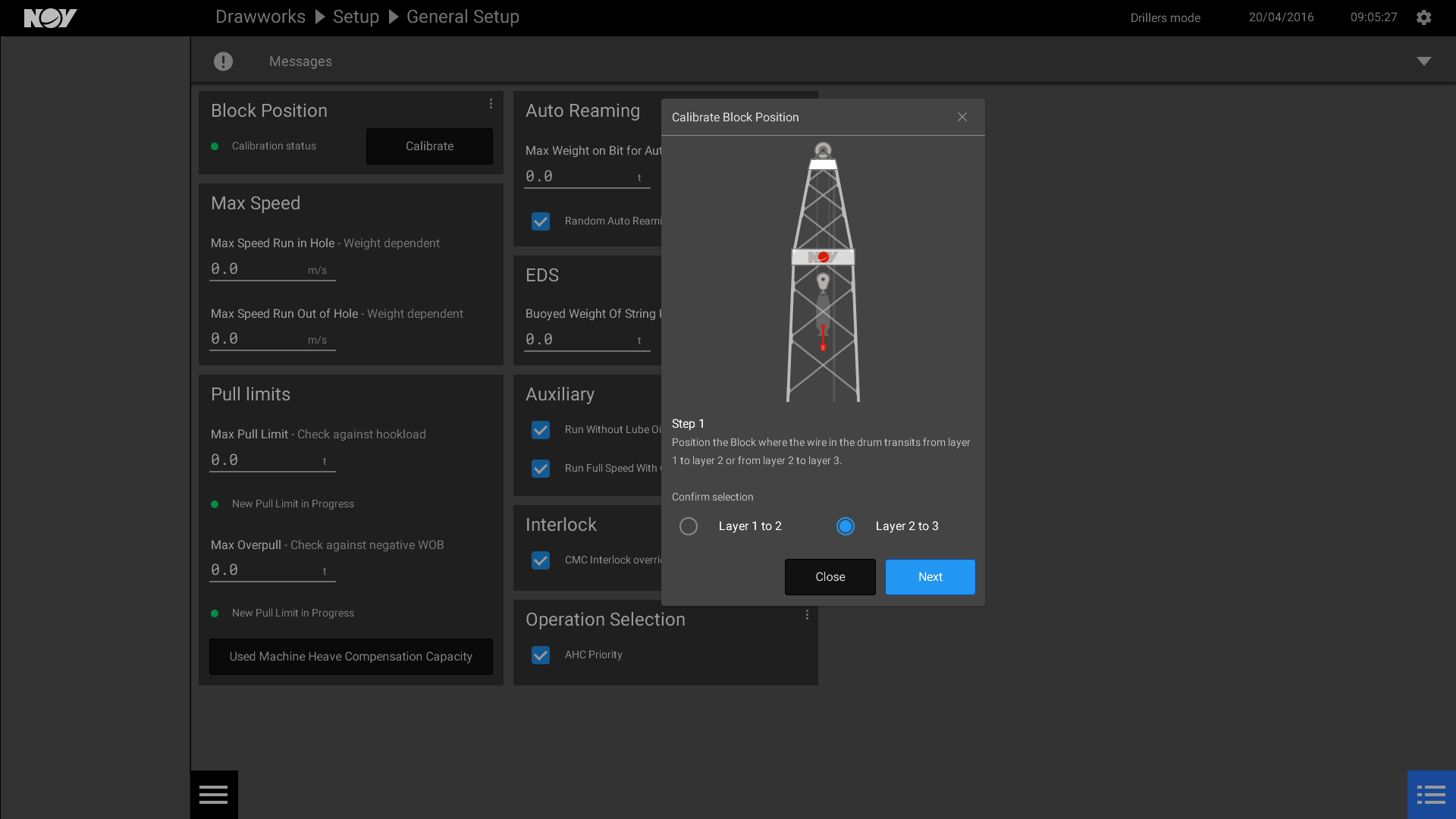

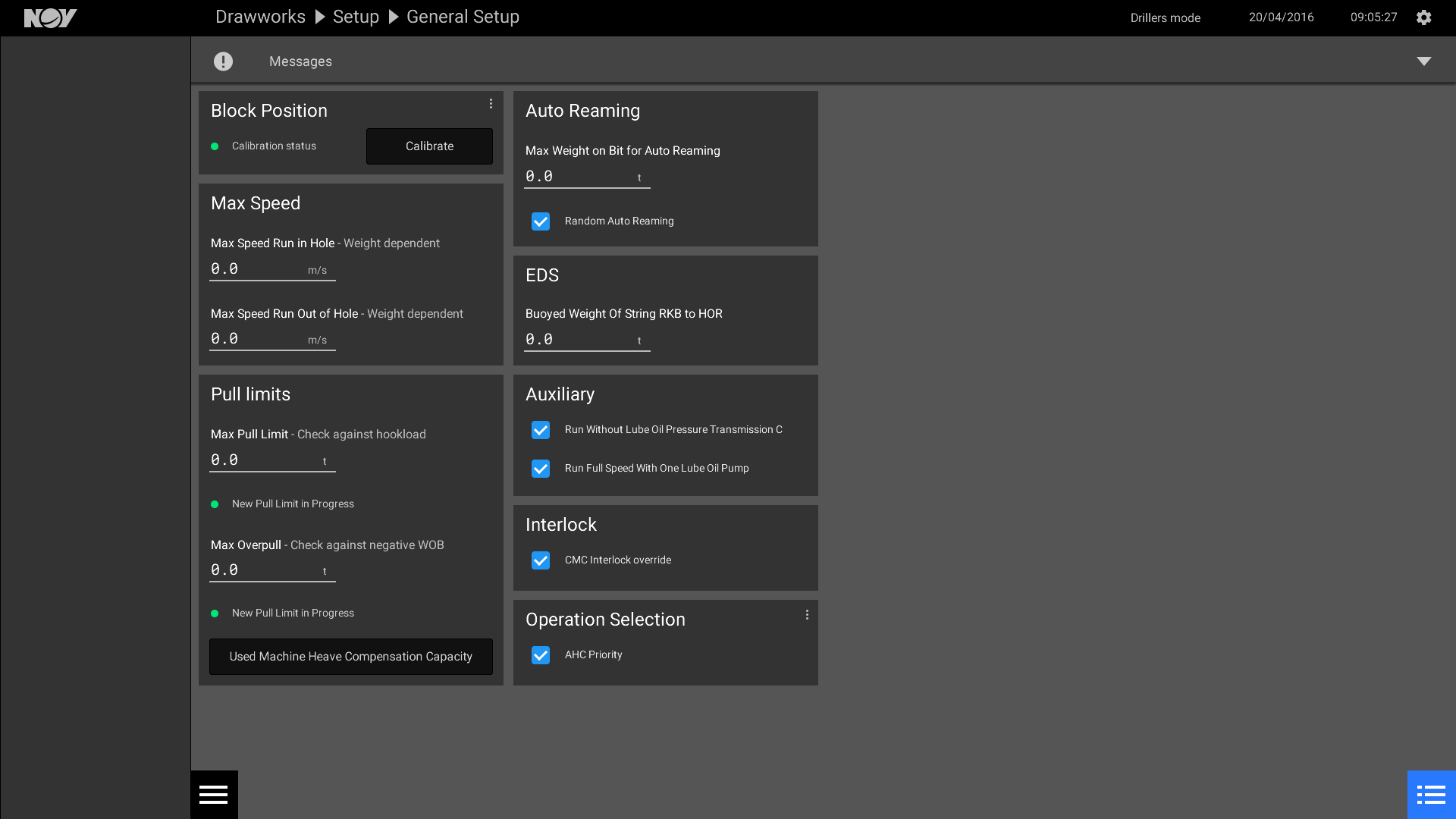

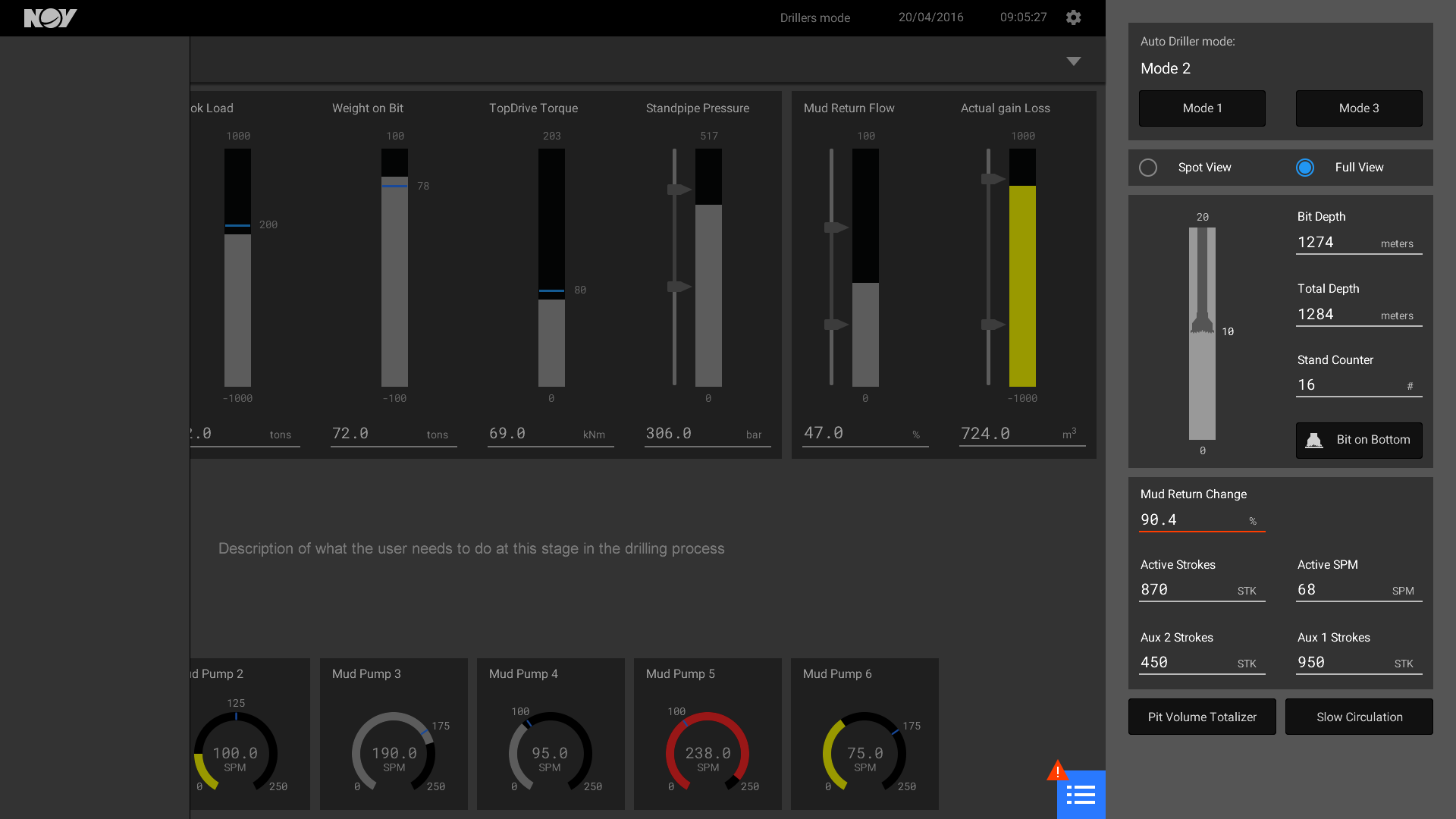

This was a job to develop a new look and feel for the HMI system used to control the drilling operation within the Cyberbase system. The entire interface needed a visual upgrade as well as a more intuitive and operation-based usage.
My job was to identify all the features, possibilities and potential use-cases in the new system. Next the job was to organize them in a logical way, and create workflows based on the different use-cases.
When this was done, mock-ups and prototypes was made for testing, before the GUI was upgraded with the new look and feel
